VC2C Vibration Switch

$382.20

Categories: , SKU: VSCT1

Description

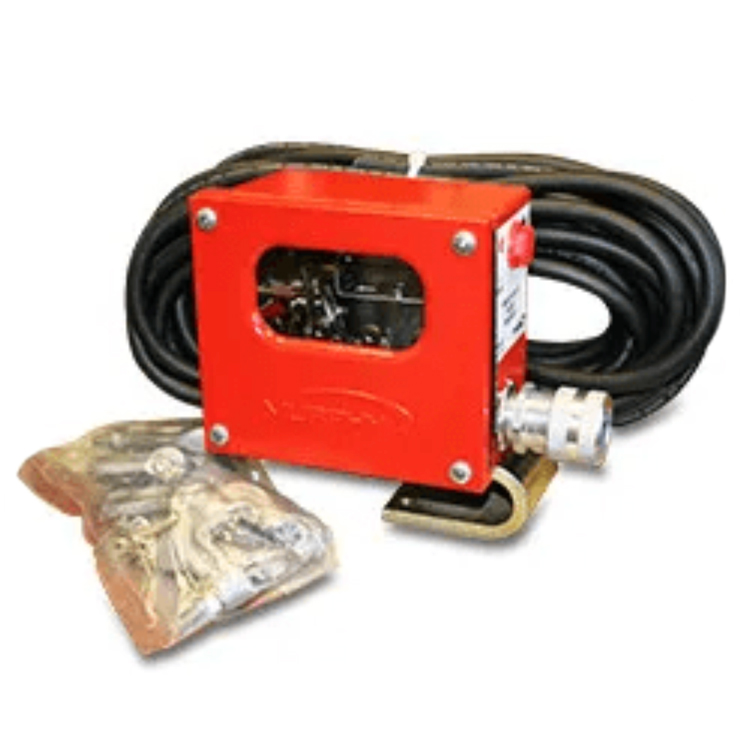

VC2C Vibration Switch for Cooling Tower Fans

  • Mounting Clamp
  • Cable

The VS2 Series switches are shock sensitive mechanisms for shutdown of engine or electric motor powered equipment. These switches use a magnetic latch to ensure reliable operation. This model features a C-clamp mount, which includes 45 ft. (13.7m) 2-conductor cable, and 5 cable clamps.

Ideal for use on engines, pumps, compressors, heat ex changers and pumping units – the VS2 can be used anywhere shutdown protection from damaging shock/vibration is desired. Switches are field adjustable to sensitivity required in each application

  • C-Clamp Installation (VS2C model only)
  • A C-Clamp is supplied with the VS2C model only. The C-Clamp is shipped installed on the VS2C but may optionally be installed on the VS2EX and VS2EXR switches.
  • The C-Clamp (B) will already be installed on a ¼ in. (6mm) thick steel mounting plate. (A). Bolt the VS2EX and/or VS2EXR switch to the mounting plate as illustrated – with four 5/16 in bolts, nuts and washers.
  • The mounting location should provide convenient access to the TATTLETALE® push button (C).
